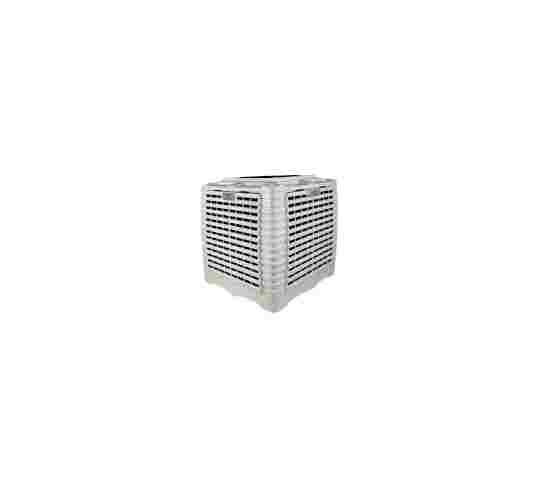

Duct Air Coolers (SYC- 30 PP)
Buy SYC-30 PP Duct Air Cooler from Alvina with 30,000 CMH airflow for factories, warehouses and industrial cooling applications across UAE and GCC.
SYC-30 PP Duct Air Cooler | Industrial Cooler Supplier UAE
The SYC-30 PP Duct Air Cooler is a high-capacity evaporative cooling unit for factories, warehouses, workshops and large industrial spaces. The PRM version delivers 30,000 CMH airflow through an axial fan powered by a 3 kW system. It operates on 3-phase 415V at 50 Hz and provides 180–200 Pa air pressure. The manufacturer states a cooling area of 250–300 m², a 40–45 L water tank and a 900 × 900 mm air outlet. Manual and remote-controller operation are available.Its duct-ready configuration allows cooled fresh air to reach selected working zones rather than remaining close to the machine. This makes it suitable for manufacturing facilities, storage areas, industrial sheds and large workshops. Alvina supplies the SYC-30 PP across UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
SYC-30 PP Duct Air Cooler for High-Volume Industrial Cooling
Large factories and warehouses often have areas where ordinary fans cannot deliver enough fresh air. Heat from machinery, production work and the building itself can collect around occupied zones. The SYC-30 PP Duct Air Cooler is built for this type of large-space cooling requirement.
The manufacturer lists the SYC-30 PP (PRM) with 30,000 CMH airflow, 3 kW power, an axial fan and 180–200 Pa air pressure. Its duct-ready arrangement allows cooled air to travel to selected sections rather than discharging only around the cooler. The rated cooling area is 250–300 m².
Alvina supplies industrial cooling solutions across the UAE and GCC, including Abu Dhabi, Dubai, Sharjah, Saudi Arabia, Riyadh, Jeddah, Dammam, Qatar, Bahrain, Kuwait and Oman.
What is the SYC-30 PP Duct Air Cooler?
The SYC-30 PP is a high-capacity Industrial Duct Air Cooler based on evaporative cooling. It draws fresh air through water-wetted cooling media. As some of the water evaporates, heat transfers from the incoming air to the water. The axial fan then moves the cooled air towards the duct outlet.
Unlike a portable cooler, this arrangement allows installers to route air through ductwork. It can therefore serve workstations, production sections, storage areas or other zones located away from the machine.
The manufacturer describes its duct air cooler range as suitable for factories, warehouses, workshops, commercial buildings, showrooms and industrial facilities.
Key Features of SYC-30 PP Duct Air Cooler
- 30,000 CMH Airflow: Provides high-volume air delivery for large industrial spaces.
- 3 kW Power: The PRM configuration uses a 3 kW power rating.
- Axial Fan: Moves a large volume of air through the cooling and distribution system.
- 180–200 Pa Air Pressure: Supports airflow through a properly designed duct arrangement.
- Top/Down Discharge: Offers installation flexibility according to the duct layout.
- Single-Speed Operation: The manufacturer specifies a single-speed configuration.
- Manual/Remote Control: The PRM version supports manual or remote-controller operation.
- Large Cooling Coverage: The stated coverage for the PRM version is 250–300 m².
- 40–45 L Water Tank: Provides water storage for the evaporative cooling process.
Uses of SYC-30 PP Duct Air Cooler
- Factories: Supplies fresh cooled air around manufacturing and production areas.
- Warehouses: Helps distribute airflow across large storage and working spaces.
- Workshops: Directs cooler air towards fabrication, repair and maintenance zones.
- Production Plants: Supports air movement around machinery and occupied workstations.
- Assembly Areas: Duct outlets can distribute airflow along assembly and production lines.
- Industrial Sheds: Provides cooling for large enclosed or semi-enclosed working areas.
- Commercial Facilities: Serves large spaces where evaporative cooling suits the operating conditions.
- Service Centres: Delivers air towards separate work bays through a planned duct network.
Applications Across UAE and GCC
- Abu Dhabi: Suitable for industrial plants, maintenance facilities, workshops and warehouses.
- Dubai: Can serve logistics facilities, warehouses, factories and large commercial workspaces.
- Sharjah: Suitable for fabrication workshops, manufacturing units and industrial sheds.
- Saudi Arabia: Can support factory, warehouse and workshop cooling where evaporative cooling suits local conditions.
- Riyadh: The hot, dry climate can suit evaporative cooling applications with adequate ventilation.
- Jeddah: Industrial users should consider the area’s higher humidity when evaluating evaporative cooling performance.
- Dammam: Suitable for workshops, manufacturing facilities and industrial buildings with planned ventilation.
- Qatar: Can serve warehouses, workshops and suitable large commercial facilities.
- Bahrain: Suitable for industrial areas where ducted fresh-air distribution is required.
- Kuwait: High-volume airflow can support suitable factories, warehouses and large work areas.
- Oman: Can be applied in workshops, industrial sheds, storage areas and manufacturing facilities.
Technical Specification
| Technical Specification | Details |
|---|---|
| Model | SYC-30 PP (PRM) |
| Air Discharge | Top / Down |
| Power | 3 kW |
| Air Flow | 30,000 CMH |
| Fan Type | Axial |
| Voltage | 3 Phase, 415V |
| Frequency | 50 Hz |
| Speed Option | Single Speed |
| Control System | Manual / Remote Controller |
| Dimensions | 1320 × 1320 × 1250 mm |
| Air Pressure | 180–200 Pa |
| Cooling Area | 250–300 m² |
| Water Tank | 40–45 L |
| Air Outlet Size | 900 × 900 mm |
These specifications are listed in Synergy’s manufacturer catalogue for the SYC-30 PP (PRM).
Note: Synergy also lists a separate SYC-30 PP (ECO) version. That model has different dimensions, outlet size, tank capacity, cooling coverage and control arrangement, so its specifications should not be mixed with the PRM version.
How Does the SYC-30 PP Work?
A warm outside air first passes through wet evaporative cooling media. Water evaporation absorbs heat from this incoming air stream. An axial fan then moves the cooled air into the duct connection. From there, ductwork carries the airflow towards the required zones.
Because this process continually introduces fresh air, the building also needs an effective route for warm air to leave. Suitable openings, louvers or mechanical extraction can form part of the overall ventilation design.
Relative humidity affects evaporative cooling performance. Therefore, project selection should consider the local climate along with duct resistance, heat load, building dimensions and required airflow.
Standards, Certifications and Compliance
- ISO 9001 – Quality Management System
- IEC – Electrical and Electronic Standards
- CE Marking Requirements
- RoHS Requirements
These are relevant standards and regulatory references. Certification of the exact SYC-30 PP unit should be confirmed from the applicable manufacturer documents before making a compliance claim.
Why Choose the SYC-30 PP from Alvina?
- High Airflow: The 30,000 CMH rating supports demanding large-area applications.
- Duct Distribution: Air can reach selected zones instead of remaining around one discharge point.
- Industrial Capacity: The 250–300 m² stated coverage suits substantial working areas.
- Axial Fan Design: High-volume air movement supports industrial ventilation and cooling requirements.
- Flexible Control: The PRM configuration provides manual and remote-controller options.
- Regional Supply: Alvina supplies industrial cooling solutions throughout the UAE and GCC.
Frequently Asked Questions
1. What is the airflow capacity of the SYC-30 PP?
The SYC-30 PP (PRM) has a manufacturer-rated airflow of 30,000 CMH.
2. What area can the SYC-30 PP cool?
The manufacturer states a cooling area of approximately 250–300 m² for the PRM configuration.
3. What is the power rating?
The SYC-30 PP (PRM) has a listed power rating of 3 kW.
4. What electrical supply does it require?
It operates on a 3-phase 415V, 50 Hz electrical supply.
5. Can it be connected to ductwork?
Yes, the PRM model has a 900 × 900 mm air outlet for ducted air distribution.
6. What is the difference between SYC-30 PP PRM and ECO?
Both are rated at 30,000 CMH, but their size, outlet, tank, controls and stated cooling area differ.
7. Where is the SYC-30 PP available?
Alvina supplies industrial cooling solutions across UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
Conclusion
The SYC-30 PP Duct Air Cooler is a high-capacity option for projects that need substantial airflow combined with ducted distribution. Its PRM configuration delivers 30,000 CMH, uses a 3 kW axial fan system and provides 180–200 Pa of air pressure. The manufacturer rates it for approximately 250–300 m².
For factories, warehouses, workshops and production buildings, the duct arrangement gives installers greater control over where fresh cooled air enters the workspace. Final system design should still consider humidity, heat load, duct length, air pressure and exhaust ventilation.
Alvina supplies this High Airflow Duct Cooler and other industrial cooling solutions across the UAE and GCC.
