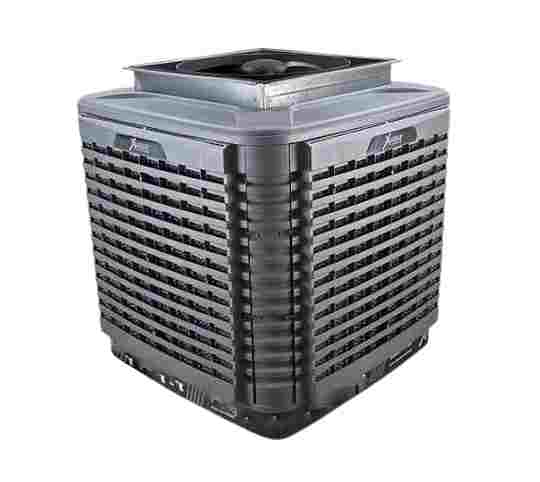

Duct Air Coolers (SYC-35 PP)
SYC-35 PP Duct Air Cooler supplier in UAE. Alvina provides industrial duct cooling solutions with high airflow, axial fan and efficient cooling performance.
SYC-35 PP Duct Air Cooler | Industrial Air Cooler Supplier in UAE
SYC-35 PP Duct Air Cooler is an industrial evaporative cooling system designed for factories, warehouses, workshops and commercial spaces. The unit uses an axial fan system with 2.2/3 kW power options and delivers airflow between 25,000 and 30,000 CMH. It supports duct-based air distribution with an 805 × 805 mm air outlet size, providing effective cooling for areas between 200–250 m². The cooler operates on 3 Phase 415V power supply and includes manual and remote controller options. With 180–200 Pa air pressure, single or multi-speed operation and a 35–40 litre water tank, the SYC-35 PP model provides reliable cooling performance for industrial applications. Alvina supplies SYC-35 PP Duct Air Cooler solutions across UAE and GCC countries.
SYC-35 PP Duct Air Cooler for Industrial Cooling Applications
Industrial buildings often face temperature challenges because of machinery, production processes and limited air movement inside large spaces. A normal fan can circulate air, but it cannot reduce temperature. For these environments, an evaporative cooling system with duct air distribution provides a more practical solution.
The SYC-35 PP Duct Air Cooler is developed for factories, warehouses, workshops and commercial facilities that require high-volume air delivery. The unit combines an axial fan system with water-based cooling technology to deliver fresh and cooler air through duct connections.
With an airflow capacity of 25,000–30,000 CMH, this model can handle large working areas while maintaining continuous air circulation. The unit operates with a 3-phase 415V power supply and offers manual as well as remote controller options.
Alvina supplies SYC-35 PP Duct Air Cooler solutions across the UAE and GCC, including Abu Dhabi, Dubai, Sharjah, Saudi Arabia, Riyadh, Jeddah, Dammam, Qatar, Bahrain, Kuwait and Oman.
What is SYC-35 PP Duct Air Cooler?
The SYC-35 PP Duct Air Cooler is an industrial evaporative cooling unit that supplies cooled air through duct outlets.
The system works by drawing warm air through wet cooling pads. Water absorbs heat from the incoming air through evaporation, reducing the temperature before the axial fan pushes the cooled air into the connected duct system.
Unlike direct cooling units, duct air coolers allow users to distribute air to different sections of a building. This makes them useful for large factories, storage facilities and production areas where uniform airflow is required.
The model provides:
- 25,000–30,000 CMH airflow capacity
- 180–200 Pa air pressure
- 200–250 m² cooling coverage
- 805 × 805 mm air outlet size
The SYC-35 PP model supports single and multi-speed operation depending on the selected configuration.
Key Features of SYC-35 PP Duct Air Cooler
- High Air Delivery: Moves large volumes of air through duct networks for industrial spaces.
- Axial Fan System: Provides strong airflow performance with efficient air movement.
- Industrial Power Options: Available with 2.2 kW and 3 kW motor configurations.
- Flexible Control: Supports manual operation and remote controller options.
- Multiple Speed Settings: Allows airflow adjustment according to site requirements.
- Large Cooling Coverage: Suitable for areas between 200–250 m².
- Strong Air Pressure: Maintains airflow performance with 180–200 Pa pressure.
- Efficient Water Cooling: Uses evaporative technology for temperature reduction.
- Large Outlet Connection: Includes an 805 × 805 mm air outlet for duct installation.
- Industrial Installation Design: Suitable for demanding working environments.
Uses of SYC-35 PP Duct Air Cooler
- Factories: Used around production lines and manufacturing areas.
- Warehouses: Provides air distribution across storage sections.
- Workshops: Helps maintain better working conditions near equipment.
- Assembly Areas: Supports airflow where multiple workers operate.
- Automotive Facilities: Used in service and maintenance areas.
- Industrial Sheds: Provides cooling for large enclosed structures.
- Commercial Buildings: Suitable for halls and large indoor spaces.
- Processing Units: Supports cooling where machines generate heat.
- Loading Areas: Improves airflow in semi-open working zones.
Applications Across UAE and GCC
The climate across GCC countries creates a strong requirement for industrial cooling systems.
- Dubai: Warehouses, workshops and manufacturing facilities use duct cooling solutions for large indoor areas.
- Abu Dhabi: Industrial plants use evaporative cooling systems in production and maintenance locations.
- Sharjah: Fabrication units and commercial facilities use industrial cooling equipment for better air movement.
- Saudi Arabia: Facilities in Riyadh, Jeddah and Dammam use high-airflow cooling systems for warehouses and industrial operations.
- Riyadh: Large storage facilities use duct-based cooling for improved airflow distribution.
- Jeddah: Workshops and service centres use axial fan cooling systems for continuous operation.
- Dammam: Industrial locations use cooling equipment around machinery and working zones.
- Qatar, Bahrain, Kuwait and Oman: Factories, warehouses and commercial buildings use industrial evaporative cooling systems for large spaces.
Technical Specification
| Specification | Details |
|---|---|
| Product Name | Duct Air Coolers |
| Model | SYC-35 PP |
| Cooling Type | Evaporative Cooling |
| Power | 2.2 / 3 kW |
| Air Flow | 25,000–30,000 CMH |
| Fan Type | Axial Fan |
| Voltage | 3 Phase 415V |
| Frequency | 50Hz |
| Speed Option | Single / Multi Speed |
| Control System | Manual / Remote Controller |
| Size | 1320 × 1320 × 1120 mm |
| Air Pressure | 180–200 Pa |
| Cooling Area | 200–250 m² |
| Water Tank Capacity | 35–40 L |
| Air Outlet Size | 805 × 805 mm |
How Does SYC-35 PP Duct Air Cooler Work?
First warm air enters the unit through the inlet. Inside the air passes through cooling pads. The water in the pads absorbs heat from the air lowering the temperature. Then the axial fan pushes the air through ducts. The cooled air goes into the space that needs cooling. This method works best where fresh air can enter the system. It is common in factories, workshops and warehouses with air exchange.
Certifications, Standards and Compliance
- ISO 9001 – Quality Management System
- IEC 60335 – Safety of Electrical Appliances
- CE Marking
- RoHS Compliance
For project requirements, confirm the latest technical documents, electrical specifications and compliance reports.
Why Choose SYC-35 PP Duct Air Cooler from Alvina?
- High airflow capacity for industrial applications.
- Suitable for factories, warehouses and workshops.
- Supports duct-based air distribution.
- Axial fan technology for continuous airflow.
- Available with manual and remote controls.
- Covers large working areas.
- Requires less energy compared with traditional cooling systems.
- Suitable for UAE and GCC climate conditions.
- Supplied by Alvina for industrial cooling requirements.
Frequently Asked Questions
1. What is SYC-35 PP Duct Air Cooler?
It is an industrial evaporative cooler that supplies cooled air through duct connections.
2. What airflow capacity does this model provide?
The unit provides airflow between 25,000 and 30,000 CMH.
3. Where can this cooler be installed?
It can be installed in factories, warehouses, workshops and commercial buildings.
4. What fan technology does this model use?
The unit uses an axial fan system for air movement.
5. What area can SYC-35 PP cover?
It can cover approximately 200–250 m² depending on site conditions.
6. Does the cooler support remote operation?
Yes, manual and remote controller options are available.
7. Where does Alvina supply this product?
Alvina supplies this model across UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
Conclusion
Large industrial areas need cooling systems that can move air efficiently across wider spaces. The SYC-35 PP Duct Air Cooler combines high airflow output, axial fan technology and evaporative cooling to provide reliable cooling for factories, warehouses and workshops.
Its 25,000–30,000 CMH airflow, 200–250 m² coverage range and duct-based air distribution make it suitable for industrial environments where continuous airflow is required. Alvina supplies SYC-35 PP Duct Air Cooler solutions across UAE and GCC regions.
