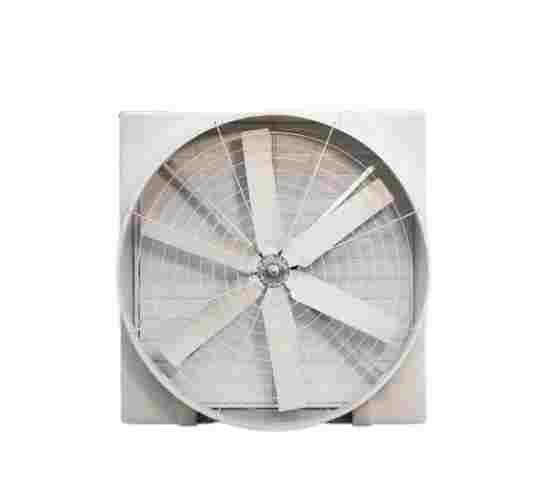

Industrial Exhaust Fan (SYE/SYX)
Buy SYE / SYX Exhaust Fan from Alvina for high-airflow factory and warehouse ventilation across UAE, Saudi Arabia, Qatar and GCC.
SYE / SYX Exhaust Fan | Industrial Ventilation Supplier in Bahrain
Industrial Exhaust Fan (SYE/SYX) is a high-airflow axial ventilation fan for factories, warehouses, workshops and large industrial spaces. The verified SYX/SYX1 range offers airflow from 5,100 to 34,000 CMH across sizes from 580 mm to 1380 mm. Published motor power ranges from 0.25 to 1.1 kW, with 415 V, three-phase, 50 Hz electrical supply. The fan uses a GI body, while blade options include GI, stainless steel and aluminium. Belt-drive and direct-drive versions are available, together with GI louver or wire-mesh arrangements. The series is useful for removing hot or stale air from production areas, warehouses, workshops, loading zones and industrial sheds. Alvina supplies SYE / SYX Exhaust Fans across the UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
SYE / SYX Exhaust Fan for Industrial Ventilation
Large industrial buildings can hold heat for hours. A warehouse roof may become hot during the day, machinery can add more heat, and without proper air exchange the whole space begins to feel heavy. In workshops, stale air may also carry odour, dust or process heat that small circulation fans cannot remove effectively. The Industrial Exhaust Fan (SYE/SYX) is designed for this type of ventilation work.
The verified SYX/SYX1 series is an axial exhaust fan range with published sizes from 580 mm to 1380 mm. Airflow ranges from 5,100 to 34,000 CMH, while motor power ranges from 0.25 to 1.1 kW. The range uses a GI body and offers GI, stainless-steel or aluminium blade options, depending on the model. Both belt-drive and direct-drive configurations are listed in the available technical information.
Alvina supplies SYE / SYX Exhaust Fan systems across the UAE and GCC, including Abu Dhabi, Dubai, Sharjah, Saudi Arabia, Riyadh, Jeddah, Dammam, Qatar, Bahrain, Kuwait and Oman.
What is an SYE / SYX Exhaust Fan?
An SYE / SYX Exhaust Fan is an industrial axial fan used to remove hot or stale air from enclosed spaces. The working idea is simple. Air is drawn through the fan and discharged outside. Once that air leaves, fresh replacement air enters from another opening such as a door, louver, window or designed air inlet.
This creates real air exchange. That is different from a circulation fan, which mainly moves the same indoor air around the room. The SYX/SYX1 series uses an axial design. Axial fans are useful where a large amount of air needs to move through a wall opening and the pressure requirement is relatively low. Because the published range covers several sizes, the fan can be used in anything from smaller workshops to much larger factory and warehouse spaces.
Key Features of the SYE / SYX Exhaust Fan
- High Airflow: The range delivers approximately 5,100 to 34,000 CMH.
- Several Fan Sizes: The range includes 580, 800, 900, 1060, 1220 and 1380 mm models.
- Axial Design: The fan moves large volumes of air through industrial spaces.
- GI Body: Galvanized iron gives the housing a durable industrial construction.
- Different Blade Materials: Customers can choose GI, stainless-steel or aluminium blades depending on the model.
- Drive Choice: The range includes belt-drive and direct-drive configurations.
- Three-Phase Power: Published specifications list 415 V, three phase and 50 Hz.
- Single-Speed Operation: The verified SYX/SYX1 range operates at a single speed.
- Louver or Mesh Options: Customers can choose GI louvers or wire-mesh arrangements.
- Wall Installation: The design works well in factories, warehouses and workshops.
Uses of SYE / SYX Exhaust Fans
- Factories: Removes hot air from production areas.
- Warehouses: Improves air exchange throughout storage spaces.
- Workshops: Extracts heat generated by machinery and fabrication work.
- Loading Areas: Clears trapped warm air near loading and dispatch points.
- Assembly Areas: Improves ventilation around occupied work zones.
- Automotive Facilities: Works in service bays and production areas.
- Industrial Sheds: Provides high-volume air extraction across enclosed buildings.
- Utility Rooms: Removes heat generated by electrical and mechanical equipment.
- Commercial Buildings: Improves ventilation in larger indoor areas.
- Engineering Plants: Moves stale and warm air away from machinery zones.
Applications Across UAE and GCC
- Dubai: Warehouses use SYE / SYX Exhaust Fan systems for storage and dispatch areas.
- Abu Dhabi: Industrial facilities install Heavy Duty Exhaust Fan units in workshops and production areas.
- Sharjah: Fabrication plants use Industrial Ventilation Fan systems around machinery.
- Saudi Arabia: Factories use Factory Exhaust Fan systems in production and warehouse buildings.
- Riyadh: Distribution centres use Warehouse Exhaust Fan units to improve indoor air exchange.
- Jeddah: Workshops use Industrial Wall Exhaust Fan systems where heat accumulates.
- Dammam: Industrial plants use High Airflow Exhaust Fan units in larger work areas.
- Qatar: Warehouses and commercial buildings use Commercial Exhaust Fan systems for ventilation.
- Bahrain: Manufacturing facilities use Industrial Exhaust Fan units in enclosed spaces.
- Kuwait: Industrial buildings use axial fans where high-volume extraction is needed.
- Oman: Workshops and factories use Industrial Air Extraction Fan systems for heat and stale-air removal.
Technical Specifications
| Specification | Published SYX/SYX1 Details |
|---|---|
| Product Name | Industrial Exhaust Fan (SYE/SYX) |
| Verified Series | SYX / SYX1 |
| Fan Type | Axial Exhaust Fan |
| Size Range | 580 / 800 / 900 / 1060 / 1220 / 1380 mm |
| Airflow | 5,100–34,000 CMH |
| Motor Power | 0.25–1.1 kW |
| Voltage | 415 V |
| Phase | Three Phase |
| Frequency | 50 Hz |
| Speed | Single Speed |
| Body Material | GI |
| Blade Material | GI / Stainless Steel / Aluminium |
| Drive Type | Belt Drive / Direct Drive |
| Front / Rear | GI Louver / Wire Mesh |
| Main Application | Factory, Warehouse and Industrial Ventilation |
How Does the SYE / SYX Exhaust Fan Work?
The fan uses an axial impeller. Air moves through the fan in the same general direction as the shaft. When the fan runs, hot indoor air is pulled toward the wall opening and pushed outside. Fresh air then enters from another point in the building. In a warehouse, for example, exhaust fans may be installed on one side while fresh-air louvers are placed on the opposite wall. This creates a path for air to travel through the space rather than allowing heat to remain trapped.
Correct sizing matters. The required airflow depends on the room volume, heat load, number of air changes, opening area and system resistance. A fan that is too small may not clear the hot air properly. A unit that is much larger than necessary can increase noise and energy use.
Certifications, Standards and Compliance
- ANSI/AMCA Standard 210 – Fan Aerodynamic Performance
- AMCA Certified Ratings Program
- IEC 60034 – Rotating Electrical Machines
- CE Marking
For project approval, request the exact fan datasheet, airflow curve, motor certificate, electrical drawing, installation details and model-specific compliance documents.
Why Choose SYE / SYX Exhaust Fans from Alvina?
- Covers a broad airflow range.
- Multiple fan diameters are available.
- GI body construction suits general industrial use.
- Several blade materials can be selected.
- Belt-drive and direct-drive models offer installation flexibility.
- Works well in factories, warehouses and workshops.
- High airflow suits larger enclosed spaces.
- Wall installation keeps the floor area clear.
- Available across the UAE and GCC.
- Fan selection can be matched to the actual ventilation requirement.
Frequently Asked Questions
1. What is an SYE / SYX Exhaust Fan?
It is an industrial axial exhaust fan used to remove hot or stale air from factories, warehouses and similar buildings.
2. What airflow is available in the SYX range?
The published airflow range is approximately 5,100 to 34,000 CMH.
3. What sizes are available?
Published sizes include 580, 800, 900, 1060, 1220 and 1380 mm.
4. Does the range include belt-drive and direct-drive fans?
Yes, the SYX/SYX1 range includes both belt-drive and direct-drive configurations.
5. What blade materials are available?
The published range includes GI, stainless steel and aluminium blades.
6. Can warehouses use the SYE / SYX Exhaust Fan?
Yes, warehouses can use the fan for high-volume ventilation when the selected model provides the required airflow.
7. Where does Alvina supply SYE / SYX Exhaust Fans?
Alvina supplies them across the UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
Conclusion
Heat can accumulate quickly inside a large warehouse or production hall. Simply moving the same indoor air from one place to another may not solve the problem. The building needs a steady exhaust path that removes hot or stale air and allows fresh air to enter. The Industrial Exhaust Fan (SYE/SYX) provides that air exchange. The verified SYX/SYX1 range delivers 5,100 to 34,000 CMH and includes several fan sizes. Motor ratings range from 0.25 to 1.1 kW, while belt-drive and direct-drive options give users more flexibility when planning an installation.
The GI housing suits general industrial environments, and customers can choose GI, stainless-steel or aluminium blades according to the available model. Customers searching for Heavy Duty Exhaust Fan, Industrial Ventilation Fan, Factory Exhaust Fan, Warehouse Exhaust Fan, Industrial Wall Exhaust Fan, High Airflow Exhaust Fan, Commercial Exhaust Fan, Industrial Exhaust Fan or Industrial Air Extraction Fan can consider the SYX range for suitable ventilation projects.
Alvina supplies SYE / SYX Exhaust Fan systems throughout the UAE and GCC.
