PNX Desiccant
Industrial Desiccant Dehumidifier PNX delivers powerful moisture control for commercial and industrial drying. Available from Alvina across UAE and GCC.
Industrial Desiccant Dehumidifier | PNX Desiccant Supplier in UAE

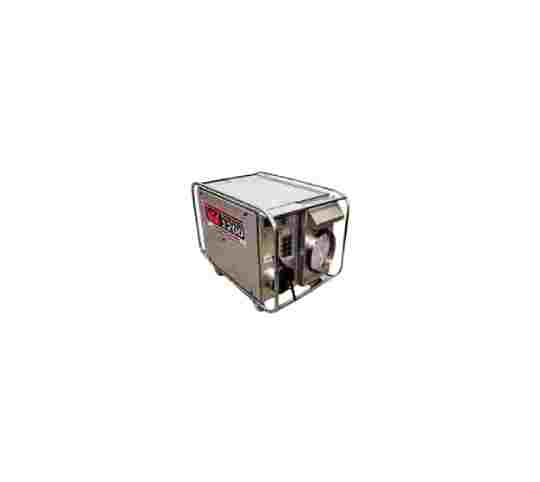

The PNX Industrial Desiccant Dehumidifier, referenced as the Phoenix 1200, provides professional moisture control for demanding drying applications. It uses a rotating desiccant wheel to adsorb water vapor from process air while a heated reactivation airflow continuously removes moisture from the desiccant. The unit delivers 900 CFM process airflow and 300 CFM reactivation airflow, with rated moisture removal of 344 pints (43 gallons) per day at AHAM conditions. Its operating range extends from -10°F to 140°F, making the machine useful across a wide range of drying conditions. Dual 8-inch process outlets provide flexible dry-air distribution, while users can choose constant-run or humidistat-controlled operation. Alvina supplies industrial dehumidification and moisture-control solutions across the UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
Industrial Desiccant Dehumidifier – PNX Desiccant for Professional Moisture Control
Excess humidity can slow production, affect stored materials, encourage condensation and create problems for equipment, coatings and building materials. An Industrial Desiccant Dehumidifier offers a practical way to control moisture, particularly when a project needs dry air across a wide temperature range.
The PNX Desiccant product corresponds to the Phoenix 1200 Portable Desiccant Dehumidifier, a professional air-drying unit with 900 CFM process airflow, 300 CFM reactivation airflow and a rated water-removal capacity of 344 pints (43 gallons) per day at AHAM conditions. It uses a rotating desiccant system rather than relying solely on refrigeration.
Alvina supplies industrial moisture-control solutions across the UAE and GCC, including Abu Dhabi, Dubai, Sharjah, Saudi Arabia, Riyadh, Jeddah, Dammam, Qatar, Bahrain, Kuwait and Oman.
What is an Industrial Desiccant Dehumidifier?
An Industrial Desiccant Dehumidifier removes water vapor from an air stream by passing process air through moisture-adsorbing desiccant media.
Inside the Phoenix 1200, a rotating desiccant wheel continuously moves between two separate air streams. The process air passes through the desiccant, where the media adsorbs moisture. A second heated reactivation air stream then drives that collected moisture out of the desiccant. The wheel continues rotating, which allows the drying cycle to operate continuously.
This operating principle allows the machine to work across temperatures from -10°F to 140°F (-23°C to 60°C) according to the specification sheet.
Key Features of Industrial Desiccant Dehumidifier
- High Process Airflow: Delivers 900 CFM of process airflow for demanding drying applications.
- Reactivation Airflow: Provides 300 CFM to regenerate the desiccant system continuously.
- Desiccant Technology: Uses moisture-adsorbing media to remove water vapor from the process air.
- Wide Operating Range: Operates from -10°F to 140°F according to the manufacturer specification.
- High Moisture Removal: Removes up to 344 pints or 43 gallons per day at AHAM conditions.
- Flexible Ducting: Provides a 12-inch inlet, dual 8-inch process outlets and an 8-inch reactivation outlet.
- Two Operating Modes: Users can select constant operation or humidistat-controlled operation.
- Portable Construction: Hi-Lo handles and a compact industrial design simplify movement between work areas.
- Stainless Steel Construction: The manufacturer uses stainless steel extensively for strength and corrosion resistance.
- Easy Maintenance: External filters provide convenient access during routine servicing.
Uses of Industrial Desiccant Dehumidifier
- Industrial Drying: Removes excess water vapor from suitable industrial work areas.
- Humidity Control: Helps maintain controlled humidity during moisture-sensitive operations.
- Water Damage Restoration: Provides high-capacity drying after suitable commercial or industrial water-loss events.
- Building Drying: Helps remove moisture from suitable construction and restoration areas.
- Storage Areas: Controls humidity where stored materials require drier environmental conditions.
- Basements: Provides professional drying for suitable basement environments.
- Crawlspaces: Delivers dry air into difficult areas through flexible ducting.
- Specialty Drying: Supports applications that require low-grain dry air and flexible air distribution.
Applications Across UAE and GCC
- Abu Dhabi: Suitable for industrial drying, restoration projects and controlled-humidity applications.
- Dubai: Supports commercial drying, building restoration and moisture-control projects.
- Sharjah: Useful for warehouses, industrial facilities and suitable manufacturing environments.
- Saudi Arabia: Supports professional drying and humidity management in industrial and commercial facilities.
- Riyadh: Useful for warehouses, construction projects and controlled indoor drying.
- Jeddah: Helps manage indoor moisture during professional drying and restoration work.
- Dammam: Supports industrial moisture control and drying projects in demanding environments.
- Qatar: Suitable for commercial facilities, warehouses and restoration projects.
- Bahrain: Helps control excessive indoor moisture in suitable industrial and commercial applications.
- Kuwait: Supports professional drying and humidity-control requirements.
- Oman: Suitable for industrial, construction and commercial moisture-management applications.
Technical Specification
| Specification | Details |
|---|---|
| Product Type | Portable Desiccant Dehumidifier |
| Reference Model | Phoenix 1200 |
| Part Number | 4028000 |
| Process Airflow | 900 CFM |
| Reactivation Airflow | 300 CFM |
| Water Removal | 344 pints/day (43 gallons) at AHAM 80°F, 60% RH |
| Power Supply | 230 V, Single Phase |
| Current Selection | 25 A or 40 A |
| Operating Range | -10°F to 140°F (-23°C to 60°C) |
| Process / React Inlet | 12-inch Flex Duct |
| Process Outlet | Dual 8-inch Outlets |
| Reactivation Outlet | 8-inch Flex Duct |
| Width | 26.5 in |
| Height | 35 in |
| Depth | 45 in |
| Weight | 265 lb |
| Operating Modes | Constant Run / Humidistat Controlled |
How Does the Desiccant Dehumidifier Work?
The unit draws humid process air into the machine and moves it through the rotating desiccant wheel. The desiccant media captures water vapor from this air stream.
Meanwhile, the unit heats a separate reactivation air stream. This heated air passes through another section of the rotating wheel and drives moisture out of the desiccant. The machine then exhausts the moisture-laden reactivation air through its dedicated outlet.
As the wheel rotates, freshly regenerated desiccant moves back into the process-air section. This continuous cycle allows the unit to keep producing dry process air. The manufacturer uses counter-flowing process and reactivation air streams to improve operating efficiency.
Why Choose PNX Desiccant from Alvina?
- Professional Moisture Control: The unit handles demanding commercial and industrial drying requirements.
- High Airflow Performance: 900 CFM process airflow supports large-scale drying applications.
- Wide Temperature Operation: Desiccant technology allows operation across a broad temperature range.
- Flexible Air Distribution: Dual process outlets make it easier to direct dry air toward different areas.
- Automatic Control Option: The humidistat-controlled mode allows the machine to respond to humidity requirements.
- Portable Industrial Design: Handles and a compact footprint simplify transportation between projects.
- Application Support: Alvina provides industrial moisture-control solutions for different commercial and industrial requirements.
- GCC Supply: Alvina supplies customers across UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
Standards, Certifications and Compliance
For this product, use the manufacturer’s nameplate and current technical documentation to confirm product-specific electrical approvals for the exact unit supplied. The official Phoenix documentation identifies the Phoenix 1200 as a 230 V single-phase machine and states that users should operate it indoors and use a ground-fault interrupter in wet areas.
- IEC 60335 – Safety of Household and Similar Electrical Appliances
- ISO 9001 – Quality Management Systems
- CE Marking – European Product Requirements
These standards provide relevant references only. Do not state that the exact PNX/Phoenix 1200 unit carries IEC, ISO or CE certification unless its current manufacturer declaration or product label confirms it.
Frequently Asked Questions
1. What is an Industrial Desiccant Dehumidifier?
It removes moisture from process air by passing the air through moisture-adsorbing desiccant material.
2. What airflow does the Phoenix 1200 provide?
The unit delivers 900 CFM process airflow and 300 CFM reactivation airflow.
3. How much water can the unit remove?
The manufacturer rates it at 344 pints, or 43 gallons, per day under AHAM conditions of 80°F and 60% relative humidity.
4. Can it operate at low temperatures?
Yes, the specification sheet lists an operating range from -10°F to 140°F.
5. Does the unit support automatic humidity control?
Yes, users can choose constant-run operation or humidistat-controlled operation.
6. What power supply does it require?
The Phoenix 1200 requires 230 V single-phase power with a user-selectable 25 A or 40 A draw.
7. Where does Alvina supply industrial dehumidifiers?
Alvina supplies moisture-control solutions across UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman.
Conclusion
The PNX Industrial Desiccant Dehumidifier provides continuous moisture removal for professional drying and humidity-control applications. Its desiccant wheel processes humid air while a separate heated airflow regenerates the wheel, allowing the drying cycle to continue.
With 900 CFM process airflow, 344-pint-per-day rated water removal, flexible ducting and a broad operating temperature range, the Phoenix 1200 suits restoration, construction drying, commercial facilities and other demanding moisture-control projects.
Alvina supplies industrial drying and humidity-control solutions across Abu Dhabi, Dubai, Sharjah, Saudi Arabia, Riyadh, Jeddah, Dammam, Qatar, Bahrain, Kuwait and Oman.
